《Structure Features》





01. Rapid Button

Feature >>

Rapid button is combined with direction switch which matches ergonomic design and is more convenient to control. Control panel also provides with jog function that enables the workpiece could be located at processing position quickly.






02. Dust Cover

Feature >>

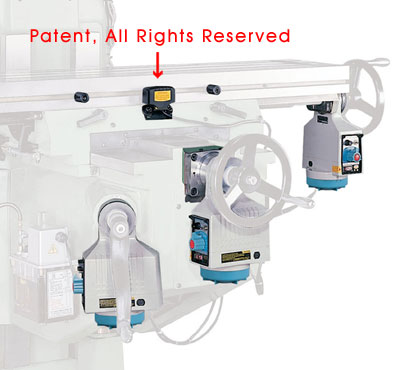

Patented left/right limit switch has waterproof; dustproof; oil proof design to prevent device breakage.






03. Foolproof Design

Feature >>

Each connection is designed & connected to different shapes of terminal for easy maintenance purpose.





04. Mainboard Structure

Feature >>

Mainboard is well protected by a series of safety designs. The automatic correction function would be activated when input voltage is unstable. It is easy to maintain while problem caused by exernal factor.





05. Spiral Bevel Gear

Feature >>

Uses spiral bevel gear for screw transmission which is more efficient and noiseless.





06. Plastic Gear

Feature >>

The gear ratio between transmission plastic gear and motor shaft gear is an infinite decimal. Two gears will not return to its origin after turns. The plastic gear is durable and the sound would be lower over time.

Remarks: The plastic gear 107T, motor shaft gear 6T

     107÷6=17.8333.....





07. Compound Stator

Feature >>

When the enameled copper wire of compound stator (0.6mm of 45 turns for Series winding; 0.13mm of 1,800 turns for Shunt winding) is operating, series + shunt has instant complementary function. So, TON-E Power Table Feed enables milling machine to operate with features of better cutting stability; avoiding vibration and cutter damage; and resulting in excellent surface finish on workpiece.


Compound DC Motor = Shunt + Series DC Motors that have instant complementary function while loading.








08. Rotor Structure

Feature >>

Rotor uses heat-resisting enameled copper wire; de-weight dynamic balancing; special designed cooling fan; aluminum alloy bearing holder.

TON-E’s rotor is durable and not easy to overheat and deform.






09. Electromagnetic Clutch - Patent

Feature >>

New patented clutch enables user to reverse direction fast and the plastic gear won’t be broken by motor shaft gear, because the clutch is attracted and repelled within 0.4 second. At the same speed, the origin repeatability of TON-E Power Table Feed is within 0.05mm.






Superior powerful clutch with face gear design for model APF-950 has higher torque and non-slip feature which is suitable for large or heavy-duty machines. Other functions; safety design and accuracy on APF-950 are the same as model APF-500 and APF-750.
